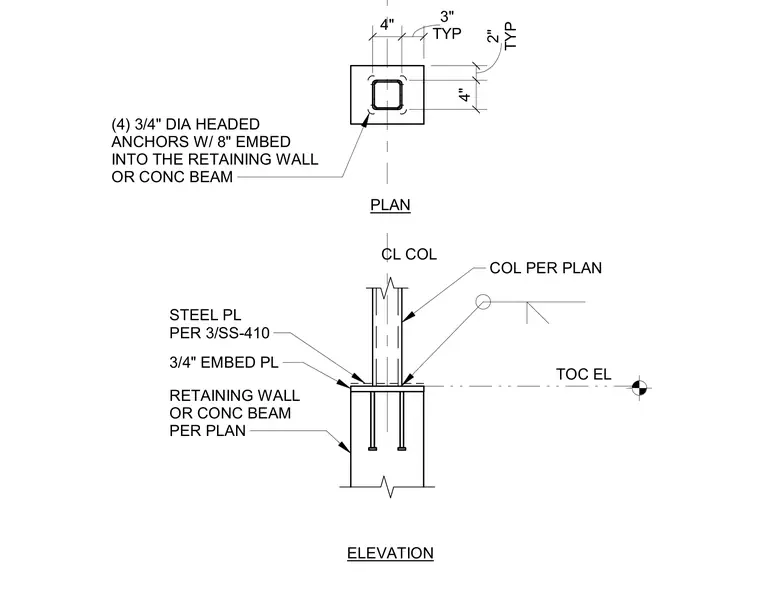

A steel column connects to a concrete retaining wall or concrete beam using a three-quarter-inch embed plate and steel plate detailed per plan. Four three-quarter-inch diameter headed anchors with eight-inch embedment secure the assembly into the concrete element. The column aligns with the center line of the column and is welded to the base plate.
TOC EL (4) 3/4" DIA HEADED ANCHORS W/ 8" EMBED INTO THE RETAINING WALL OR CONC BEAM 3/4" EMBED PL ELEVATION PLAN CL COL COL PER PLAN RETAINING WALL OR CONC BEAM PER PLAN 4" TYP 3" TYP 2" 4" STEEL PL PER 3/SS-410
