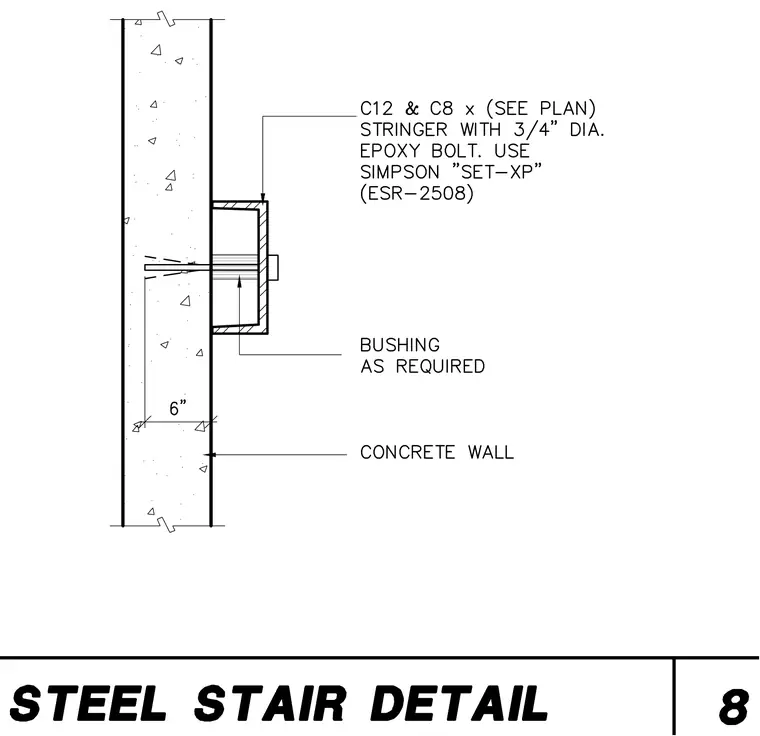

A C12 and C8 channel stringer is anchored to a 6-inch thick concrete wall using three-quarter-inch diameter epoxy bolts with Simpson SET-XP adhesive per ESR-2508. A bushing is installed as required between the connection assembly and the wall. The concrete wall provides the structural backup for the stair stringer mounting condition.
