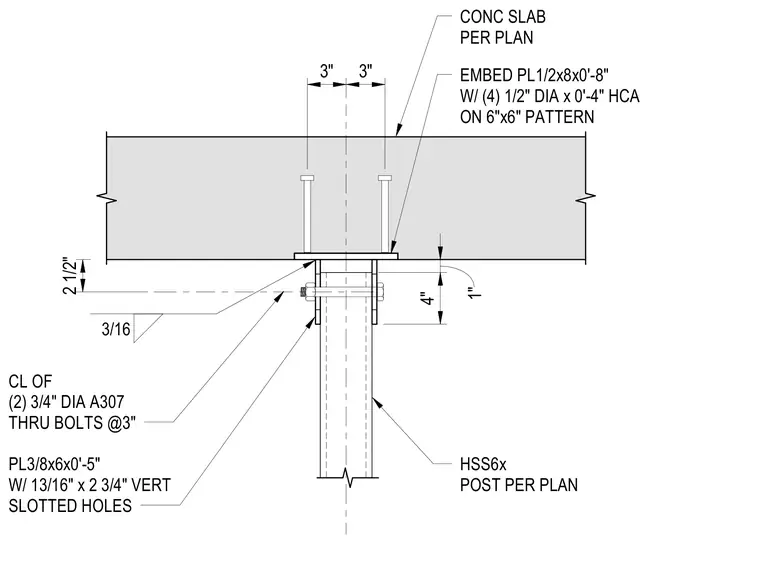

An HSS6x structural steel post connects to a concrete slab via a welded embed plate and a slotted plate assembly. A half-inch thick by eight-inch square embed plate with four half-inch diameter by four-inch headed concrete anchors cast on a six-inch by six-inch pattern anchors the post to the underside of the concrete slab. A three-eighths thick by six-inch by five-inch connection plate featuring thirteen-sixteenths by two-and-three-quarter-inch vertical slotted holes is welded to the HSS post with a three-sixteenths fillet weld. Two three-quarter-inch diameter A307 thru-bolts spaced at three inches secure the post connection through the slotted plate.
CL OF (2) 3/4" DIA A307 THRU BOLTS @3" CONC SLAB PER PLAN PL3/8x6x0'-5" W/ 13/16" x 2 3/4" VERT SLOTTED HOLES HSS6x POST PER PLAN EMBED PL1/2x8x0'-8" W/ (4) 1/2" DIA x 0'-4" HCA ON 6"x6" PATTERN 3/16 4" 1" 2 1/2" 3" 3"
