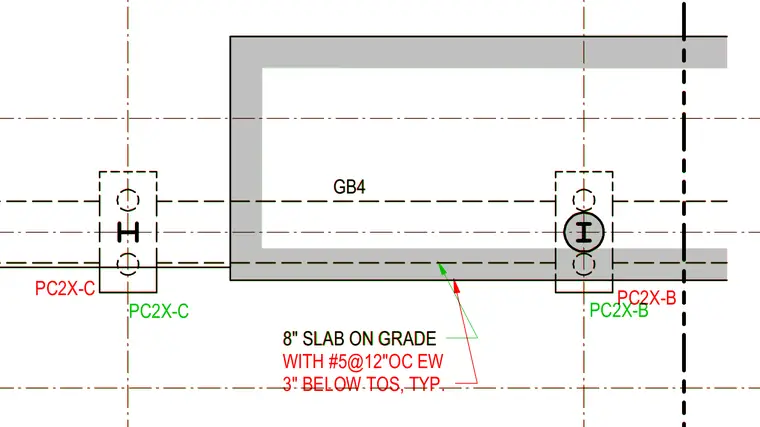

An eight-inch slab on grade is reinforced with number five reinforcing bars at twelve inches on center each way, positioned three inches below the top of slab as typical. Grade beams designated as GB4 support the concrete slab alongside structural columns designated as PC2X-B and PC2X-C.
PC2X-B PC2X-C 8" SLAB ON GRADE WITH #5@12"OC EW 3" BELOW TOS, TYP. GB4 PC2X-B PC2X-C 8" SLAB ON GRADE GB4
