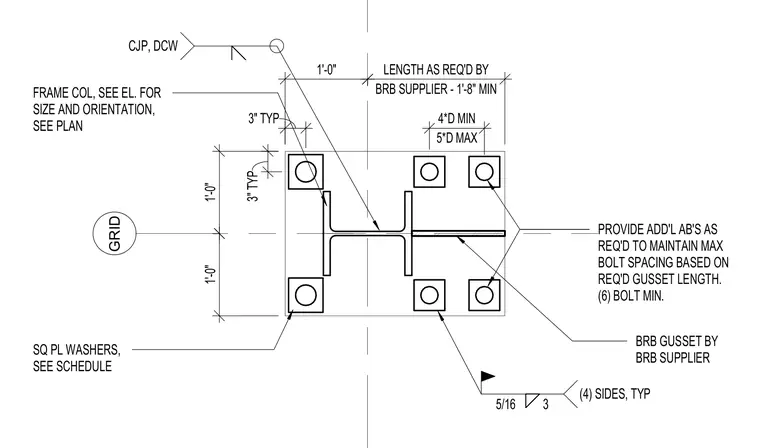

A structural steel frame column connects to a foundation base plate with anchor bolts and square plate washers. A buckling-restrained brace gusset plate ties into the column web and is welded with a five-sixteenths inch fillet weld on four sides typically. Additional anchor bolts are provided as required to maintain maximum bolt spacing based on the required gusset length with a minimum of six bolts. A complete joint penetration weld with a backing bar connects members at the top.
GRID BRB SUPPLIER - 1'-8" MIN LENGTH AS REQ'D BY 1'-0" 1'-0" 3" TYP 1'-0" FRAME COL, SEE EL. FOR SIZE AND ORIENTATION, SEE PLAN SQ PL WASHERS, SEE SCHEDULE BRB GUSSET BY BRB SUPPLIER 5/16 3 (4) SIDES, TYP PROVIDE ADD'L AB'S AS REQ'D TO MAINTAIN MAX BOLT SPACING BASED ON REQ'D GUSSET LENGTH. (6) BOLT MIN. CJP, DCW 5*D MAX 4*D MIN 3" TYP
