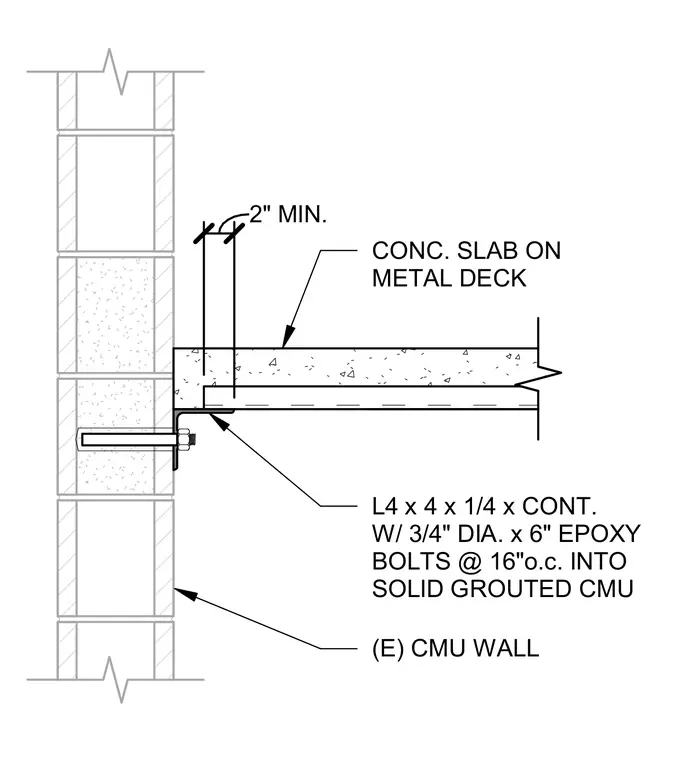

A concrete slab on metal deck bears on a continuous L4x4x1/4 steel angle anchored to an existing solid grouted concrete masonry unit wall. The continuous angle is secured with three-quarter-inch diameter by six-inch epoxy anchors spaced at sixteen inches on center. The concrete slab maintains a two-inch minimum thickness above the steel deck.
L4 x 4 x 1/4 x CONT. W/ 3/4" DIA. x 6" EPOXY BOLTS @ 16"o.c. INTO SOLID GROUTED CMU (E) CMU WALL 2" MIN. CONC. SLAB ON METAL DECK
