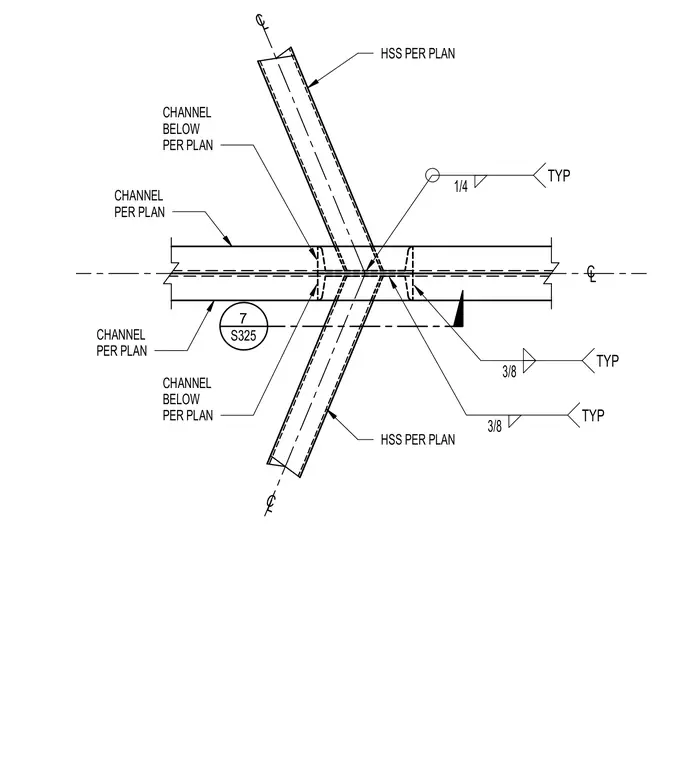

An interior structural steel connection joins hollow structural section members intersecting structural steel channels located above and below as sized per plan. The hollow structural section members are welded to the channels with typical quarter-inch and three-eighths-inch fillet welds as specified. Centerline alignments govern the joint geometry and member positioning throughout the assembly.
C L 1/4 TYP C L C L 3/8 TYP HSS PER PLAN CHANNEL PER PLAN CHANNEL PER PLAN HSS PER PLAN 3/8 TYP CHANNEL BELOW PER PLAN CHANNEL BELOW PER PLAN 7 S325
