Steel hollow structural section columns receive a three-quarter-inch thick cap plate welded across the top. Seven-eighth-inch diameter A325N bolts in standard holes fasten the assembly in typical configurations unless noted otherwise. Plate dimensions are sized according to column width, beam width, and the workable gauge of the supported beam per AISC Manual Table 1-1.

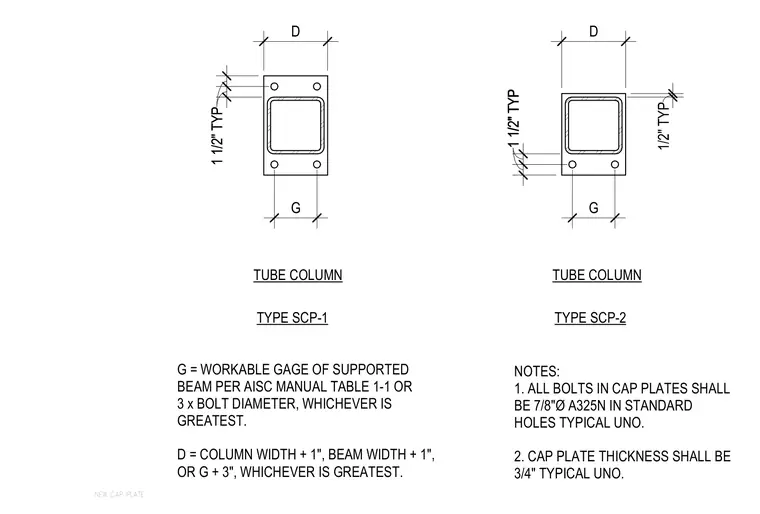

NEW CAP PLATE TUBE COLUMN 1 1/2" TYP 1 1/2" TYP D G TUBE COLUMN G = WORKABLE GAGE OF SUPPORTED BEAM PER AISC MANUAL TABLE 1-1 OR 3 x BOLT DIAMETER, WHICHEVER IS GREATEST. D = COLUMN WIDTH + 1", BEAM WIDTH + 1", OR G + 3", WHICHEVER IS GREATEST. D G 1 1/2" TYP 1 1/2" TYP 1/2" TYP NOTES: 1. ALL BOLTS IN CAP PLATES SHALL BE 7/8"Ø A325N IN STANDARD HOLES TYPICAL UNO. 2. CAP PLATE THICKNESS SHALL BE 3/4" TYPICAL UNO. TYPE SCP-1 TYPE SCP-2
