Structural · S-Z8Q9X

Reinforced Concrete Grade Beam Section and Reinforcement Detail

Materials

Elements

Beams Foundations / Footings Reinforcing

About this detail

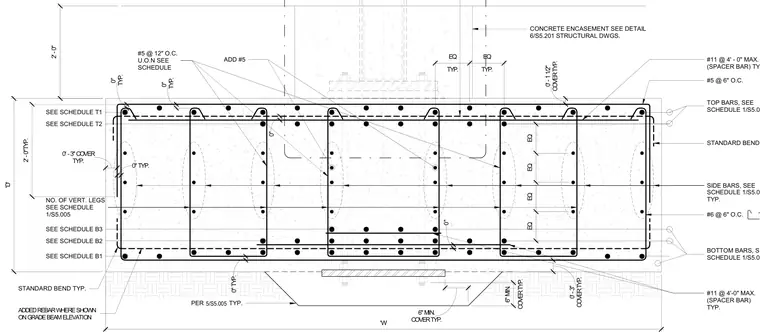

A reinforced concrete grade beam profile features top and bottom reinforcing bars sized per schedule, side bars at six inches on center, and vertical stirrup legs. Spacer bars of size number eleven at four feet maximum on center are provided alongside standard rebar bends and additional rebar where indicated on the grade beam elevation. Concrete cover measures three inches typically at the perimeter, with a six inch minimum cover at specific bottom locations. Concrete encasement details reference additional structural drawings.
