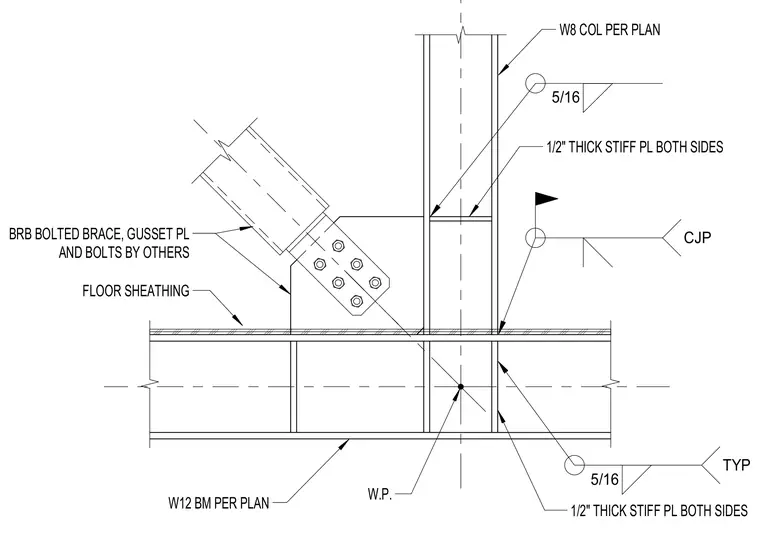

A buckling-restrained brace connects with bolts to a gusset plate welded to a W12 floor beam and W8 column. One-half-inch thick stiffener plates are welded to both sides of the column and beam web using five-sixteenths inch fillet welds. A complete joint penetration weld secures the connection where required, and floor sheathing is detailed above the beam flange.
W8 COL PER PLAN CJP 1/2" THICK STIFF PL BOTH SIDES W12 BM PER PLAN BRB BOLTED BRACE, GUSSET PL AND BOLTS BY OTHERS 1/2" THICK STIFF PL BOTH SIDES 5/16 FLOOR SHEATHING 5/16 TYP W.P.
