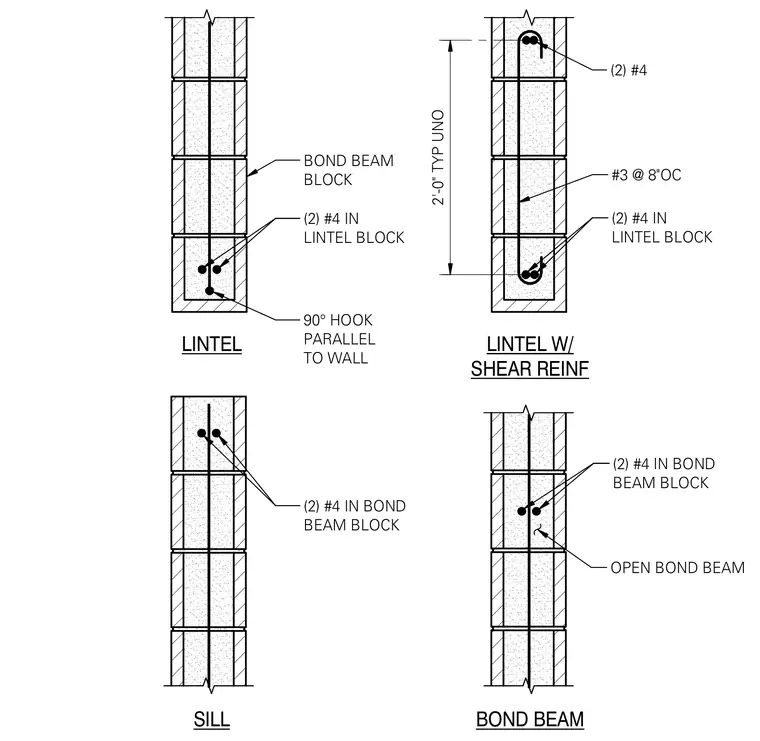

Concrete masonry unit wall assemblies show standard reinforcing configurations for lintels, sills, and bond beams. The lintel detail incorporates two number four bars in lintel blocks with ninety-degree hooks parallel to the wall. The lintel with shear reinforcement includes vertical number three stirrups spaced at eight inches on center with two number four bars top and bottom. The sill and bond beam details indicate specific placement of two number four bars within bond beam blocks and open bond beam units.
LINTEL LINTEL W/ SHEAR REINF BOND BEAM SILL BOND BEAM BLOCK (2) #4 IN LINTEL BLOCK 90° HOOK PARALLEL TO WALL (2) #4 IN BOND BEAM BLOCK OPEN BOND BEAM (2) #4 IN BOND BEAM BLOCK (2) #4 IN LINTEL BLOCK #3 @ 8"OC (2) #4 2'-0" TYP UNO
