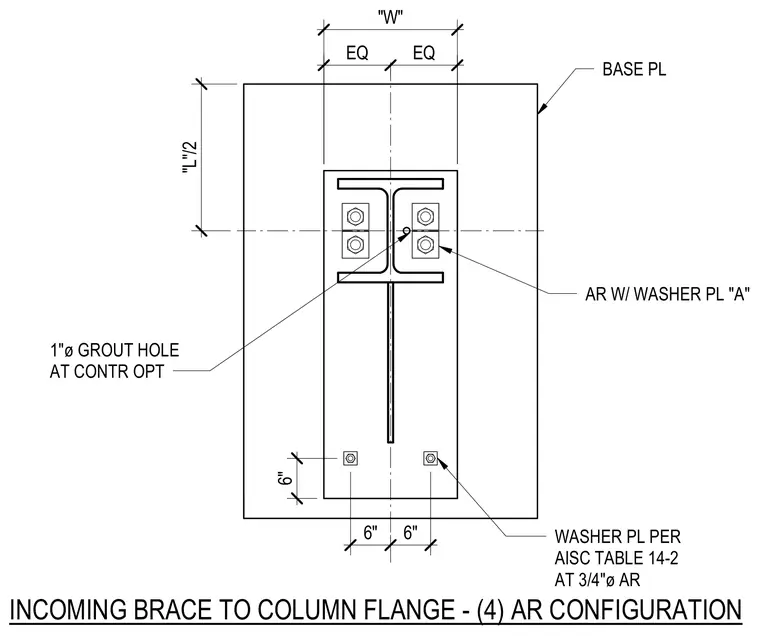

An incoming structural brace connects to a steel column flange using a base plate secured with four anchor rods in an AR configuration. Washer plates sized per AISC Table 14-2 are positioned at each 3/4-inch diameter anchor rod. A 1-inch diameter grout hole is provided at the contractor's option.
"L"/2 6" 6" INCOMING BRACE TO COLUMN FLANGE - (4) AR CONFIGURATION "W" AR W/ WASHER PL "A" BASE PL WASHER PL PER AISC TABLE 14-2 AT 3/4"ø AR 6" 1"ø GROUT HOLE AT CONTR OPT EQ EQ
