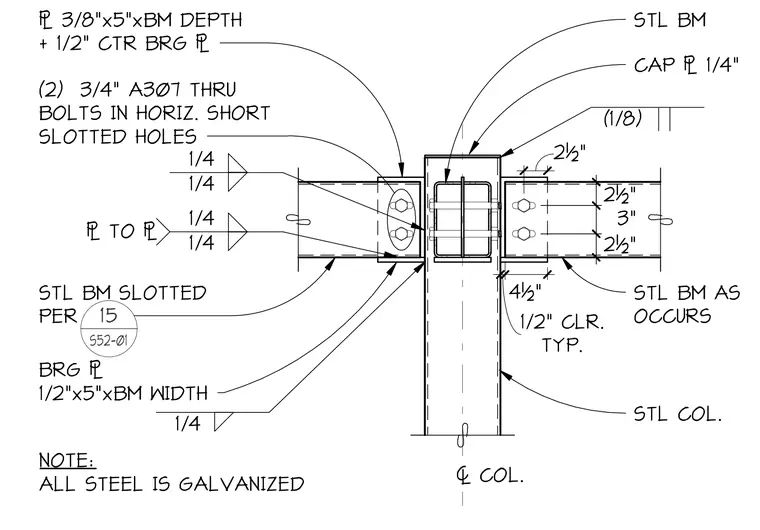

A steel beam frames into a steel column with a bearing plate and a 1/4-inch cap plate welded to the column top. Two 3/4-inch A307 through bolts are installed in horizontal short slotted holes to accommodate movement. A 3/8-inch by 5-inch plate matching the beam depth plus a 1/2-inch center bearing plate connects the webs, while a 1/2-inch by 5-inch bearing plate supports the bottom flange. All structural steel is galvanized per project specifications.
2½" 3" 2½" 2½" TYP. 1/2" CLR. 4½" STL BM CAP # 1/4" STL BM AS OCCURS COL. # 3/8"x5"xBM DEPTH + 1/2" CTR BRG # (2) 3/4" A307 THRU BOLTS IN HORIZ. SHORT SLOTTED HOLES 1/4 1/4 1/4 1/4 # TO # STL BM SLOTTED PER NOTE: ALL STEEL IS GALVANIZED STL COL. BRG # 1/2"x5"xBM WIDTH 1/4 (1/8) 15 S52-01
