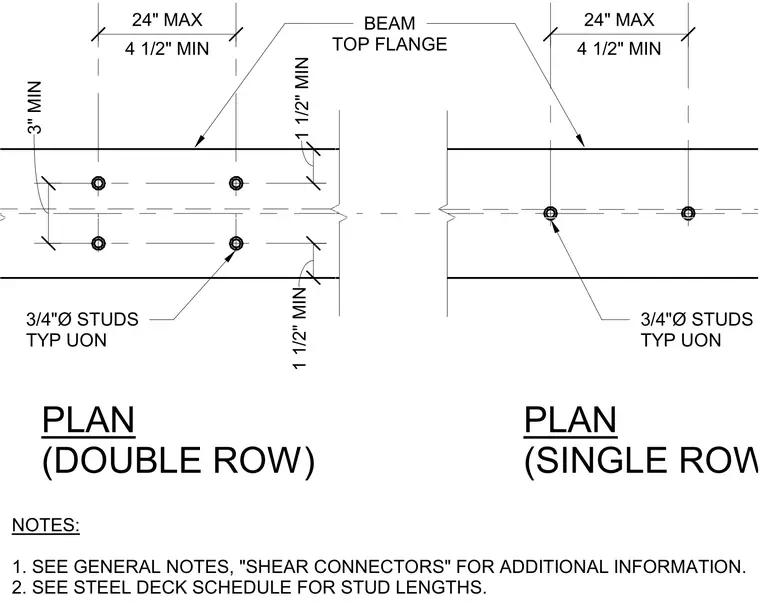

Three-quarter-inch diameter shear studs are welded to the steel beam top flange in single and double row configurations. Spacing requirements dictate a maximum of twenty-four inches on center with minimum edge and spacing dimensions of one and one-half inches, three inches, and four and one-half inches as shown. Additional installation criteria are governed by general notes and the steel deck schedule.
PLAN (DOUBLE ROW) PLAN (SINGLE ROW) NOTES: 1. SEE GENERAL NOTES, "SHEAR CONNECTORS" FOR ADDITIONAL INFORMATION. 2. SEE STEEL DECK SCHEDULE FOR STUD LENGTHS. BEAM TOP FLANGE 3/4"Ø STUDS TYP UON 4 1/2" MIN 24" MAX 4 1/2" MIN 24" MAX 3/4"Ø STUDS TYP UON 1 1/2" MIN 1 1/2" MIN 3" MIN
