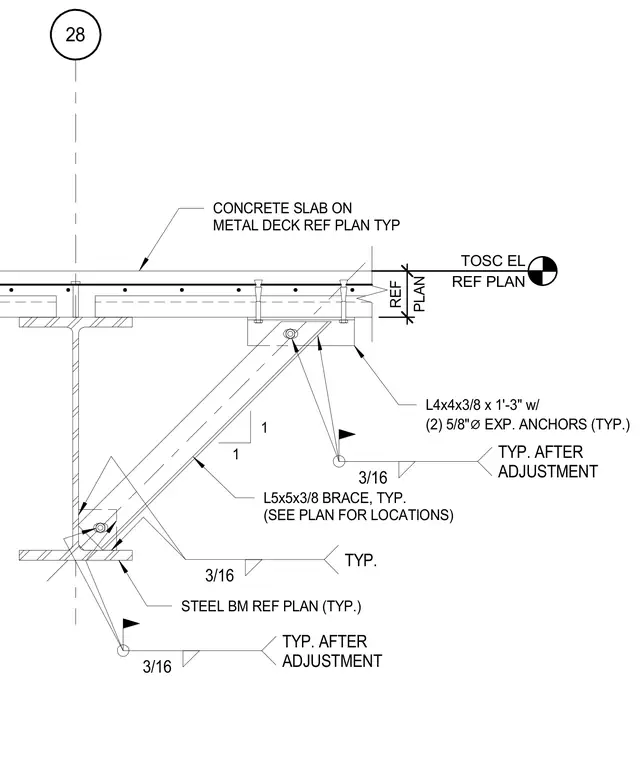

An L5x5x3/8 structural angle brace connects diagonally between a structural steel beam and an L4x4x3/8 by 1'-3" embed angle secured with two 5/8-inch diameter expansion anchors beneath a concrete slab on metal deck. The brace is welded using 3/16-inch fillet welds at both ends, noted for typical adjustment alignment. A steel beam supports the upper assembly, while the lower end of the brace frames into the bottom flange of the beam.
TOSC EL REF PLAN CONCRETE SLAB ON METAL DECK REF PLAN TYP STEEL BM REF PLAN (TYP.) PLAN REF L5x5x3/8 BRACE, TYP. (SEE PLAN FOR LOCATIONS) 3/16 TYP. 1 1 L4x4x3/8 x 1'-3" w/ (2) 5/8" ⌀ EXP. ANCHORS (TYP.) 3/16 TYP. AFTER ADJUSTMENT 3/16 TYP. AFTER ADJUSTMENT 28
