Structural · S-Z86RN

Typical Concrete Edge Beam and Beam-Girder Intersections

Materials

Elements

About this detail

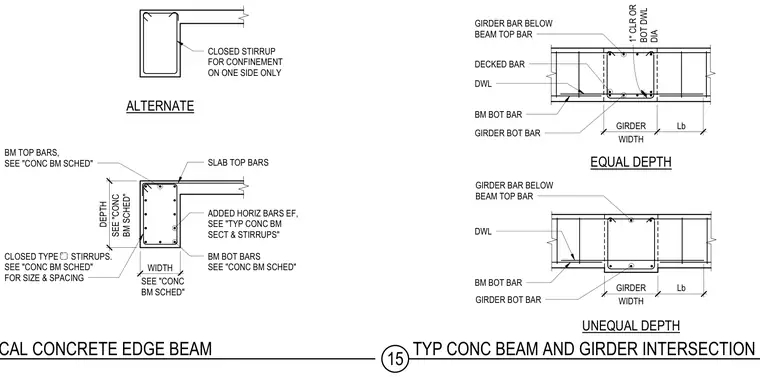

Standard reinforcing bar layouts for cast-in-place concrete edge beams and beam-to-girder intersections. The edge beam detail includes slab top bars, beam top and bottom bars, added horizontal bars each face, and closed-type stirrups sized per the concrete beam schedule. Equal and unequal depth beam-girder intersection details locate girder bars, decked bars, dowels, and beam bottom bars relative to the girder width and depth. Alternate closed stirrups provide confinement on one side only at specific intersection conditions. Clearances and development lengths are dimensioned for proper rebar placement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
