Structural · S-Z86DE

Housekeeping Pad Detail

Materials

Concrete Metal (misc.)

Elements

Floors / Slabs Decks Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

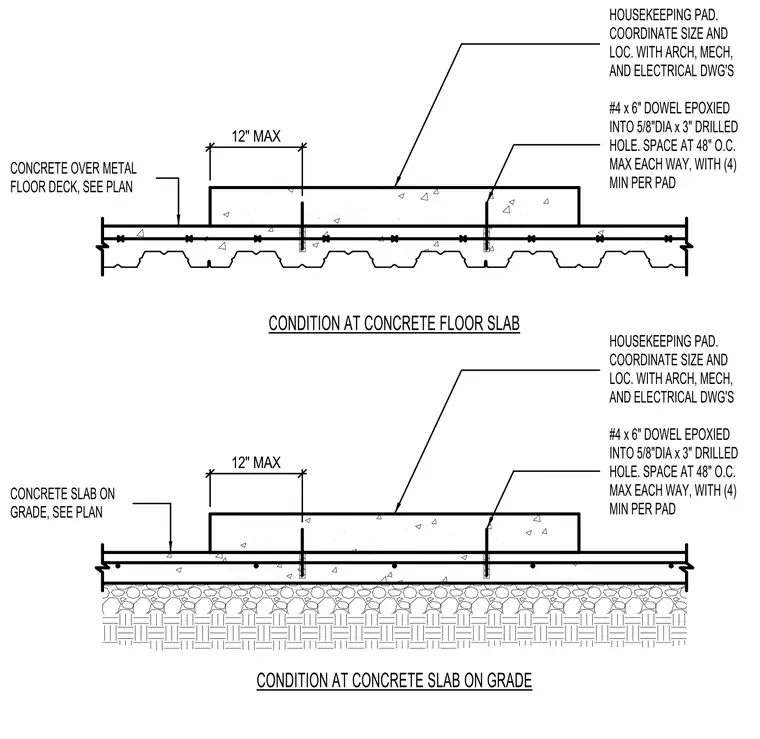

Concrete housekeeping pads are anchored to supporting slabs using number four steel dowels measuring six inches in length, epoxied into five-eighth-inch diameter by three-inch drilled holes spaced at forty-eight inches on center. Each pad requires a minimum of four dowels placed with a maximum spacing of twelve inches each way. The housekeeping pad dimensions and locations must be coordinated with architectural, mechanical, and electrical drawings. Two conditions are detailed: one atop a concrete over metal floor deck sized per plan, and another over a concrete slab on grade sized per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
