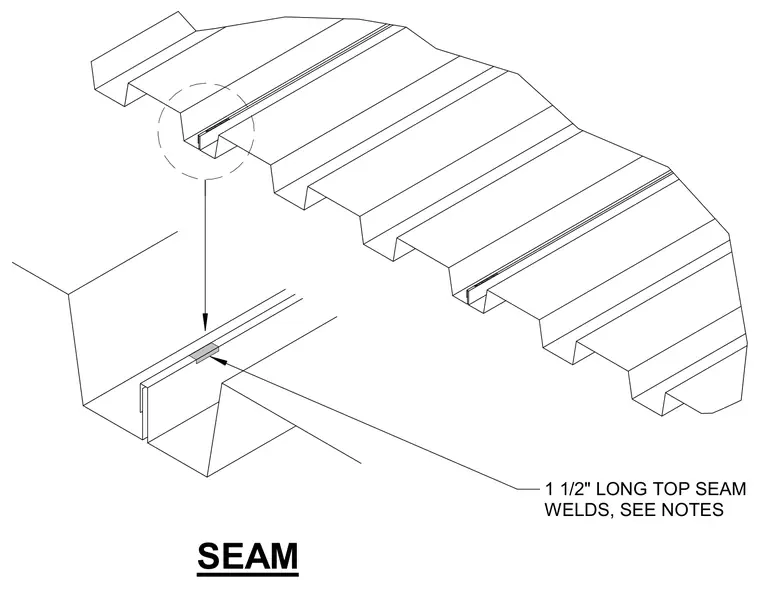

Adjacent corrugated metal deck panels are joined along the side lap with one and a half inch long top seam welds, per structural notes. The enlarged isometric view clarifies the weld placement along the interlocking seam.
