Banded tendons run parallel to the slab edge while distributed tendons terminate at anchorages along the perimeter. Corner slab edge reinforcement and perimeter reinforcing bars provide confinement at the corner per plan specifications. Minimum edge distances and clearances are dimensioned for the anchor locations.

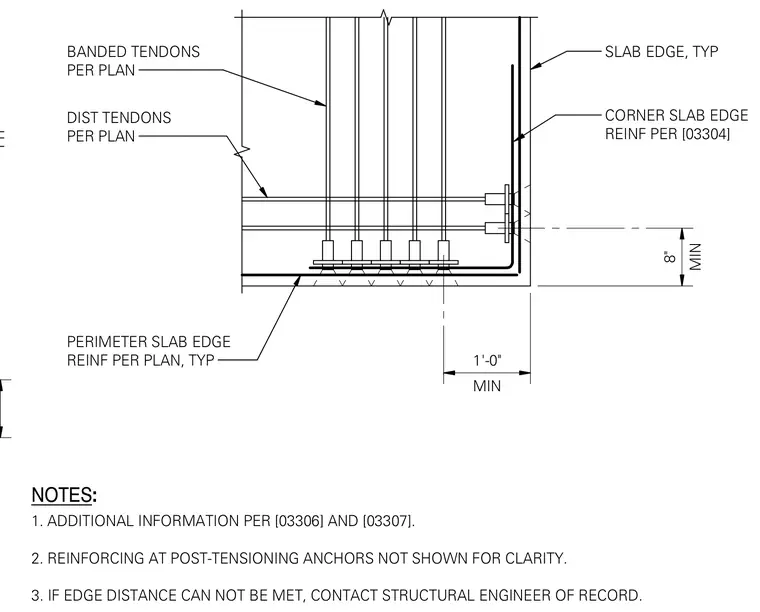

SLAB EDGE, TYP CORNER SLAB EDGE REINF PER [03304] BANDED TENDONS PER PLAN DIST TENDONS PER PLAN PERIMETER SLAB EDGE REINF PER PLAN, TYP 1. ADDITIONAL INFORMATION PER [03306] AND [03307]. 2. REINFORCING AT POST-TENSIONING ANCHORS NOT SHOWN FOR CLARITY. 3. IF EDGE DISTANCE CAN NOT BE MET, CONTACT STRUCTURAL ENGINEER OF RECORD. NOTES : MIN 1'-0" MIN 8" TYP
