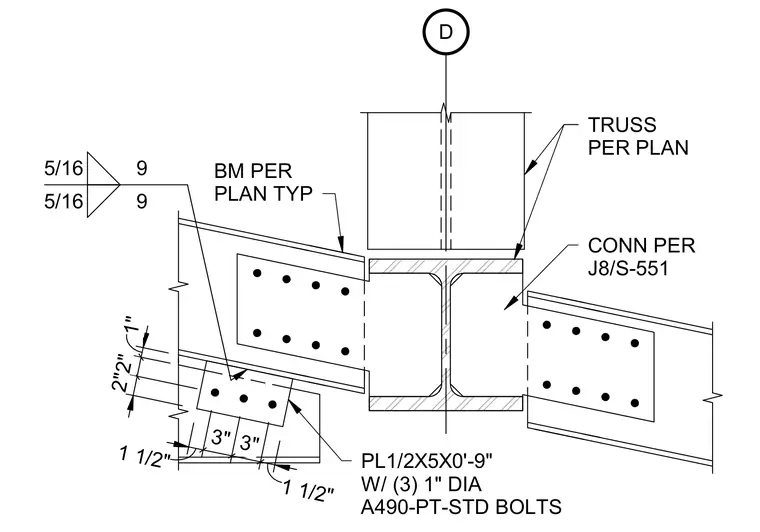

A structural steel truss connects to a vertical column member sized per plan. The connection utilizes a 1/2-inch by 5-inch plate measuring 0 feet 9 inches long, secured with three 1-inch diameter A490-PT-STD bolts. Fillet welds of 5/16-inch size join the assembly elements with specified edge distances and spacing dimensions of 1 1/2 inches, 2 inches, and 3 inches. Additional framing beams are tied into the column per plan with connections detailed on sheet J8/S-551.
D TRUSS PER PLAN 5/16 9 5/16 9 1 1/2" 3" 3" 1 1/2" CONN PER J J8/S-551 PL1/2X5X0'-9" W/ (3) 1" DIA A490-PT-STD BOLTS BM PER PLAN TYP 2"2" 1"
