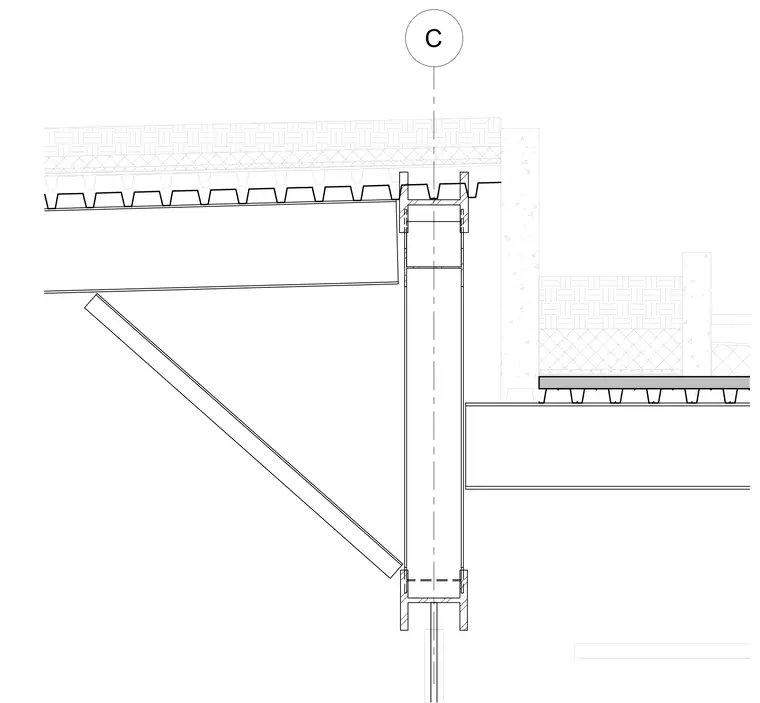

This structural section details the vertical intersection of an atrium roof and adjoining floor levels supported by a structural column. The assembly features a metal roof deck topped with insulation and surfacing, intersecting a vertical hollow structural section or tubular column element. A diagonal brace frames into the column assembly below the roof level. An adjacent floor slab with metal decking and lightweight concrete fill ties into the column.
