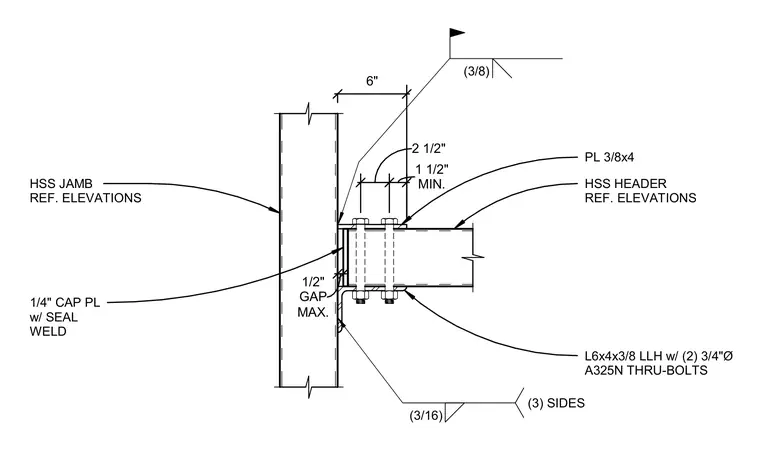

An HSS header connects to an HSS jamb using a 3/8-inch by 4-inch plate and an L6x4x3/8 angle, secured with two 3/4-inch diameter A325N through-bolts. A 1/4-inch cap plate with a seal weld closes the end of the header, maintaining a maximum gap of 1/2 inch from the jamb. The angle is welded to the jamb with a 3/16-inch fillet weld on three sides. A 3/8-inch weld connects the header assembly at the top.
MAX. 1/2" GAP 2 1/2" MIN. 1 1/2" 6" HSS HEADER REF. ELEVATIONS PL 3/8x4 L6x4x3/8 LLH w/ (2) 3/4"Ø A325N THRU-BOLTS 1/4" CAP PL w/ SEAL WELD HSS JAMB REF. ELEVATIONS (3/16) (3) SIDES (3/8)
