This connection details a beam framing into the weak axis of a wide flange column using shear plates and top and bottom stiffener plates. The stiffener plates are sized at 1/2 inch for 1/4 inch shear plates, and 3/4 inch for 3/8 inch shear plates. Plate sizes and bolting are specified per plan and coordinate with the column flange width. Spacing increments vary at 4 inches, 5 inches, and 6 inches depending on flange widths greater than 9 1/2 inches.

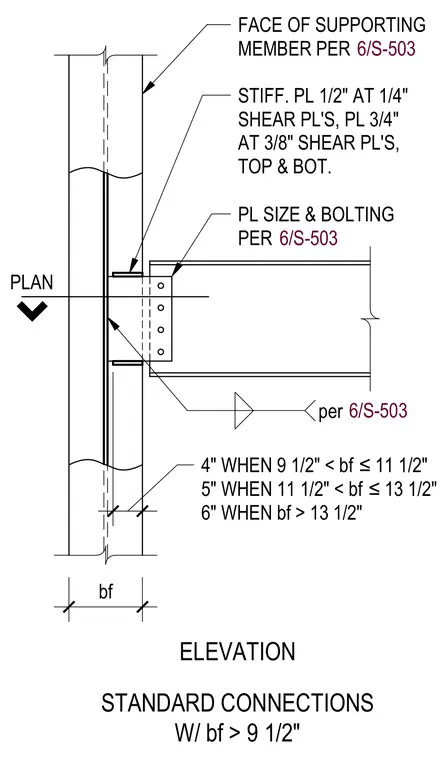

FACE OF SUPPORTING MEMBER PER STIFF. PL 1/2" AT 1/4" SHEAR PL'S, PL 3/4" AT 3/8" SHEAR PL'S, TOP & BOT. PL SIZE & BOLTING PER PLAN per 4" WHEN 9 1/2" < bf ≤ 11 1/2" 5" WHEN 11 1/2" < bf ≤ 13 1/2" 6" WHEN bf > 13 1/2" ELEVATION STANDARD CONNECTIONS W/ bf > 9 1/2" bf 6/S-503 6/S-503 6/S-503
