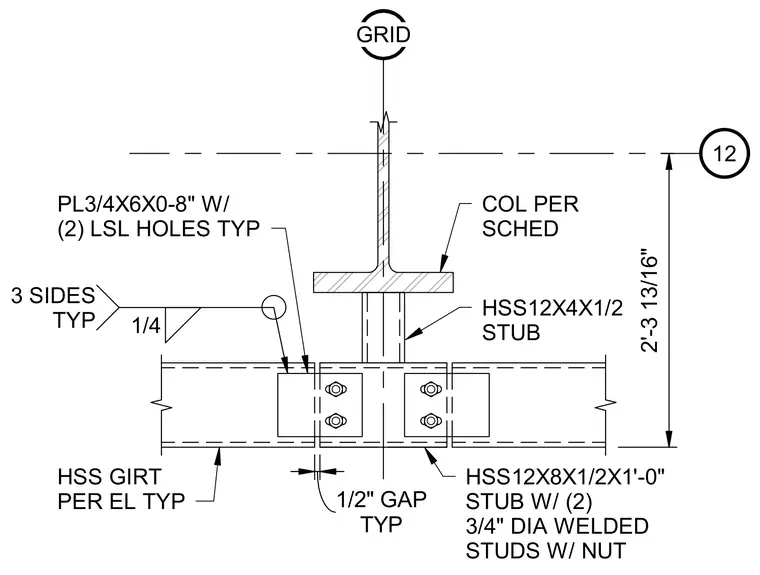

An HSS12x4x1/2 stub is welded to a column sized per schedule with a one-quarter inch fillet weld on three sides. A three-quarter by six by eight inch plate with two LSL holes connects to an HSS12x8x1/2 by one foot zero inch stub with two three-quarter inch diameter welded studs and nuts. The assembly maintains a typical half-inch gap between structural components, supporting HSS girts sized per elevations.
D 12 HSS12X8X1/2X1'-0" STUB W/ (2) 3/4" DIA WELDED STUDS W/ NUT HSS12X4X1/2 STUB HSS GIRT PER EL TYP GRID COL PER SCHED 1/4 3 SIDES TYP PL3/4X6X0-8" W/ (2) LSL HOLES TYP 2'-3 13/16" TYP 1/2" GAP
