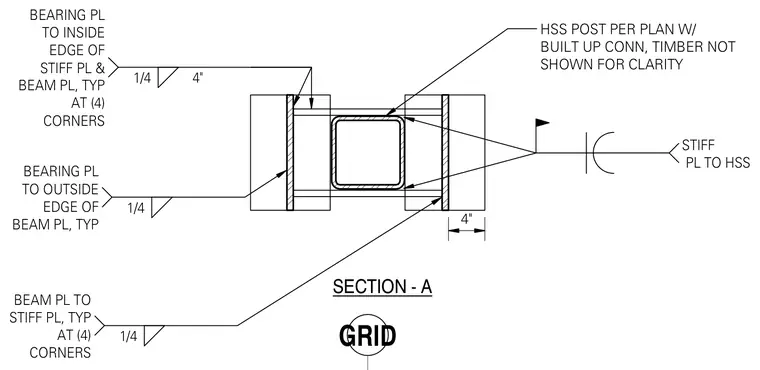

A built-up connection at a hollow structural section post, with timber omitted for clarity. Stiffener plates are welded to the hollow structural section using quarter-inch fillet welds. Four-inch bearing plates are welded to the inside and outside edges of the beam and stiffener plates at all four corners with quarter-inch welds. Beam plates connect to the stiffener plates with typical quarter-inch fillet welds at the four corners.
GRID 4" HSS POST PER PLAN W/ BUILT UP CONN, TIMBER NOT SHOWN FOR CLARITY STIFF PL TO HSS 1/4 4" BEARING PL TO INSIDE EDGE OF STIFF PL & BEAM PL, TYP AT (4) CORNERS 1/4 BEARING PL TO OUTSIDE EDGE OF BEAM PL, TYP 1/4 BEAM PL TO STIFF PL, TYP AT (4) CORNERS SECTION - A > F 2E < ' > F
