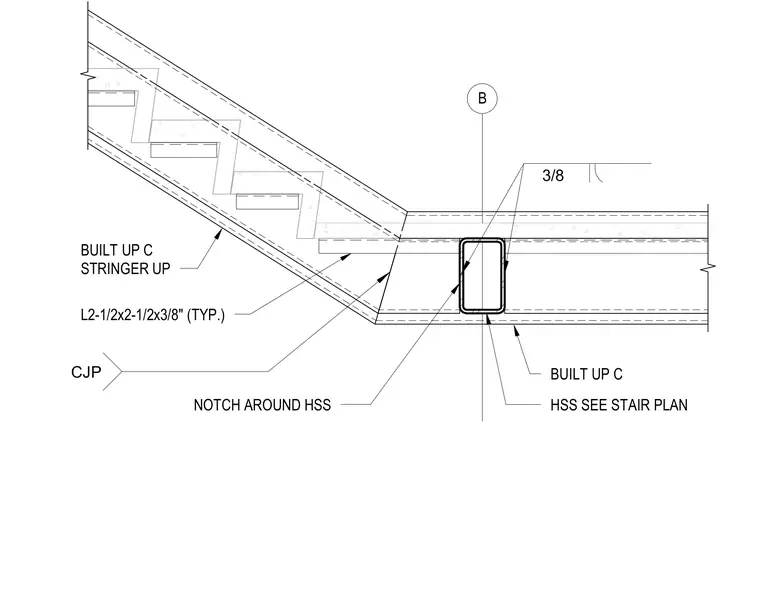

A built-up channel stair stringer connects to a hollow structural section floor member sized per the stair plan. The stringer is notched around the hollow structural section and secured with a complete joint penetration weld. Additional structural support is provided by typical L2-1/2x2-1/2x3/8-inch angles and a three-eighths-inch built-up plate.
B BUILT UP C STRINGER UP CJP L2-1/2x2-1/2x3/8" (TYP.) 3/8 BUILT UP C NOTCH AROUND HSS HSS SEE STAIR PLAN
