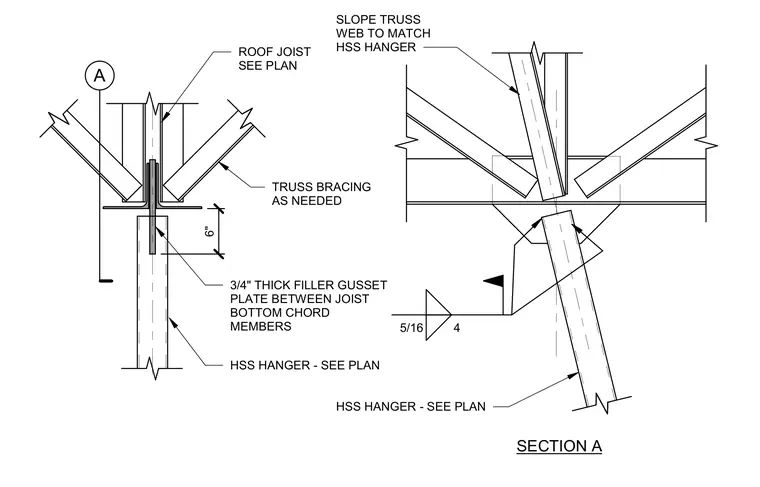

A three-quarter-inch thick filler gusset plate fits between the roof joist bottom chord members and extends into a hollow structural section hanger sized per plan. The truss web is sloped to match the hollow structural section hanger, accompanied by truss bracing installed as needed. Connections are secured with five-sixteenth-inch fillet welds.
A SECTION A HSS HANGER - SEE PLAN ROOF JOIST SEE PLAN 3/4" THICK FILLER GUSSET PLATE BETWEEN JOIST BOTTOM CHORD MEMBERS 5/16 4 6" TRUSS BRACING AS NEEDED HSS HANGER - SEE PLAN SLOPE TRUSS WEB TO MATCH HSS HANGER
