Structural · S-Z6N8X

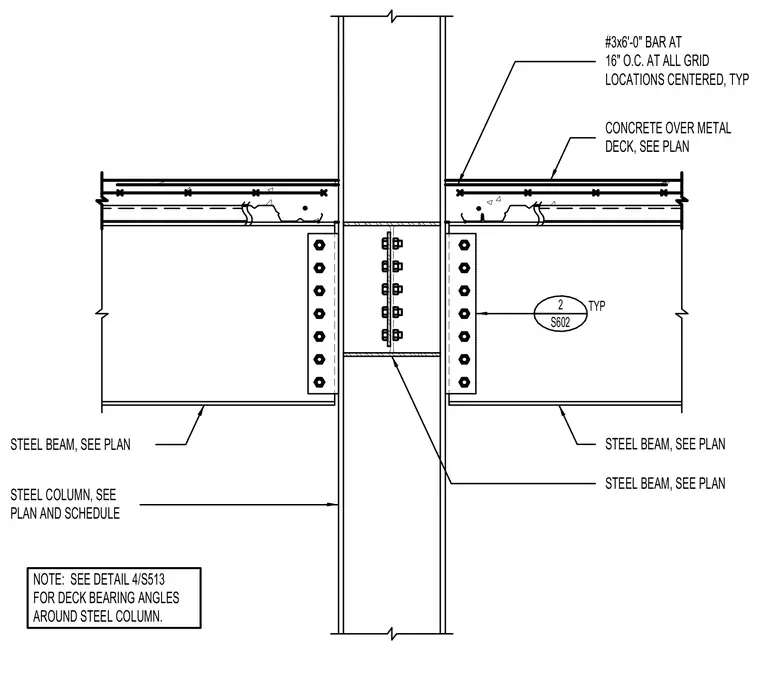

Steel Beam to Steel Column Shear Tab Connection

Materials

Elements

Columns Beams Decks Connections / Plates

About this detail

Steel beams connect to a central steel column using bolted shear tabs welded to the column web or flange. Concrete over metal deck flooring bears above the framing, reinforced with number three bars at six-foot-zero inches on center at all grid locations centered typically. Additional notes direct the builder to detail 4/S513 for deck bearing angles around the steel column. The sizes of the steel column and steel beams are sized per plan and schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
