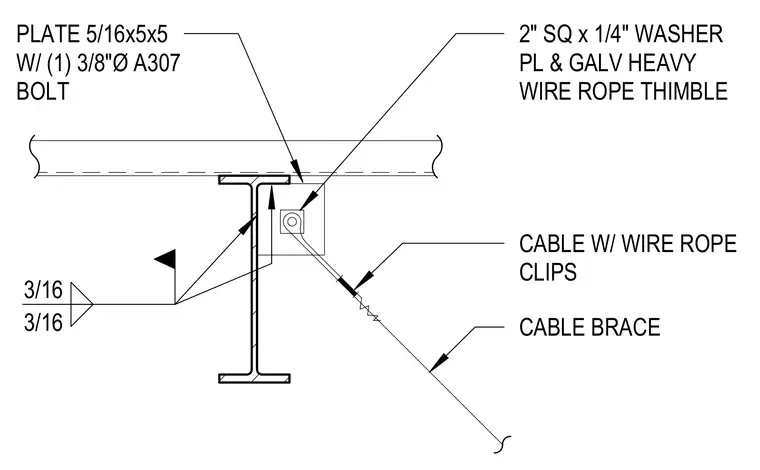

A cable brace connects to a steel beam using a five-by-five-inch plate of five-sixteenths-inch thickness, secured with one three-eighths-inch-diameter A307 bolt. A galvanized heavy wire rope thimble and a two-inch square by one-quarter-inch washer plate interface with the cable. The assembly includes a cable with wire rope clips. Three-sixteenths-inch fillet welds attach the connection plates to the structural steel beam.
CABLE BRACE CABLE W/ WIRE ROPE CLIPS 2" SQ x 1/4" WASHER PL & GALV HEAVY WIRE ROPE THIMBLE PLATE 5/16x5x5 W/ (1) 3/8"Ø A307 BOLT 3/16 3/16
