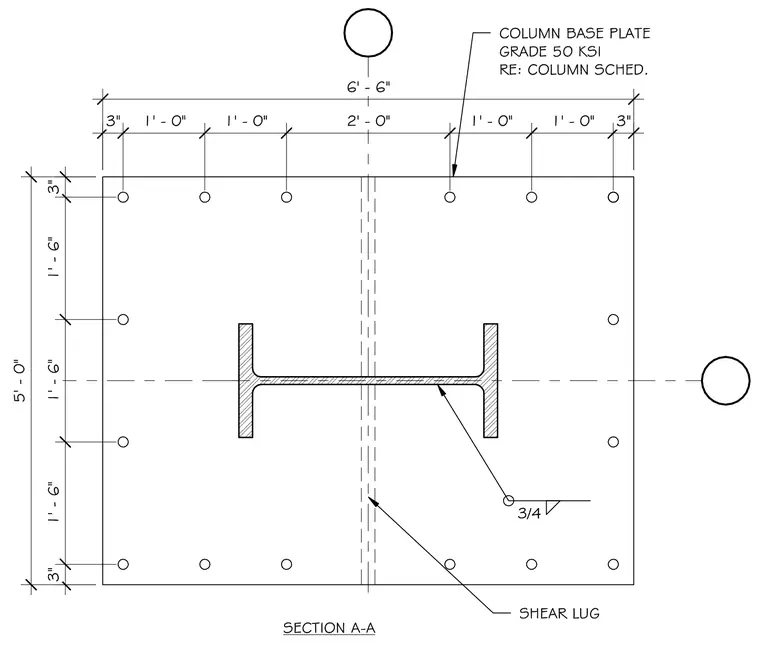

A structural steel column base plate made of Grade 50 KSI steel features a centered wide-flange column profile welded with a three-quarter-inch fillet weld. A shear lug runs down the center of the plate and is dimensioned with specific layout spacings. Anchor bolt locations are distributed around the perimeter of the base plate with symmetrical edge distances and center-to-center dimensions totaling six feet six inches by five feet zero inches overall.
COLUMN BASE PLATE GRADE 50 KSI RE: COLUMN SCHED. SHEAR LUG SECTION A-A 3" 1' - 6" 1' - 6" 1' - 6" 3" 3" 1' - 0" 1' - 0" 2' - 0" 1' - 0" 1' - 0" 3" 3/4 6' - 6" 5' - 0"
