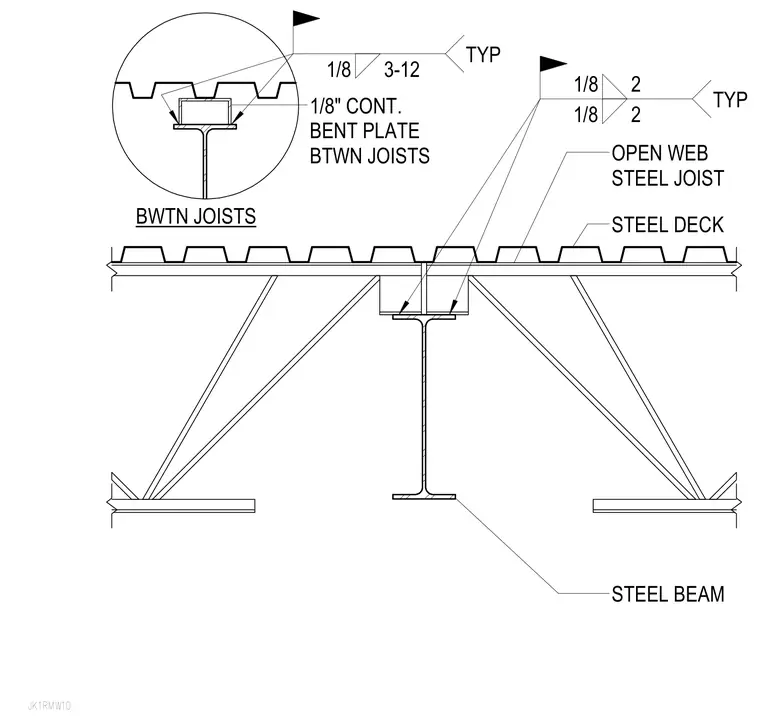

An open web steel joist bears on a supporting steel beam beneath a metal deck, tied across the span with a continuous bent plate between joists. The bent plate is welded to the joist chords with a one-eighth-inch fillet weld at twelve inches on center typically. The joists are connected to the supporting steel beam with one-eighth-inch fillet welds on both sides typically. A zoomed-in callout bubble details the bent plate assembly between joists above the beam support.
JK1RMW10 BWTN JOISTS 1/8" CONT. BENT PLATE BTWN JOISTS 1/8 3-12 TYP STEEL BEAM STEEL DECK OPEN WEB STEEL JOIST 1/8 2 1/8 2 TYP
