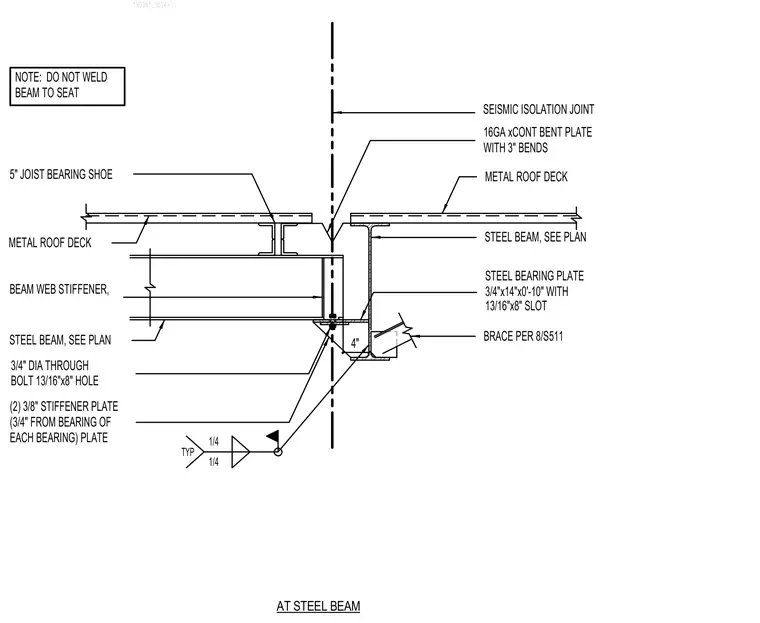

A seismic isolation joint occurs at a steel beam supporting a metal roof deck. A three-quarter-inch by fourteen-inch by zero-foot-ten-inch steel bearing plate with a thirteen-sixteenths-inch by eight-inch slot accommodates a three-quarter-inch diameter through bolt. Two three-eighths-inch stiffener plates are located three-quarters of an inch from the bearing of each plate, paired with beam web stiffeners. A sixteen-gauge continuous bent plate with three-inch bends spans across the joint below the metal roof deck. A brace connects per detail eight on sheet S511, and a note explicitly requires leaving the beam unwelded to the seat with typical one-quarter-inch fillet welds specified elsewhere.
190381_S524-11 16GA xCONT BENT PLATE WITH 3" BENDS METAL ROOF DECK STEEL BEAM, SEE PLAN AT STEEL BEAM STEEL BEAM, SEE PLAN BRACE PER 8/S511 METAL ROOF DECK BEAM WEB STIFFENER, 4" (2) 3/8" STIFFENER PLATE (3/4" FROM BEARING OF EACH BEARING) PLATE STEEL BEARING PLATE 3/4"x14"x0'-10" WITH 13/16"x8" SLOT 3/4" DIA THROUGH BOLT 13/16"x8" HOLE 5" JOIST BEARING SHOE SEISMIC ISOLATION JOINT NOTE: DO NOT WELD BEAM TO SEAT TYP 1/4 1/4
