Structural · S-Z5YM8

Grouted Anchors Embed

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Anchors / Embeds Reinforcing

Connections

Embed Plate Timber / Mass-Timber Connection

About this detail

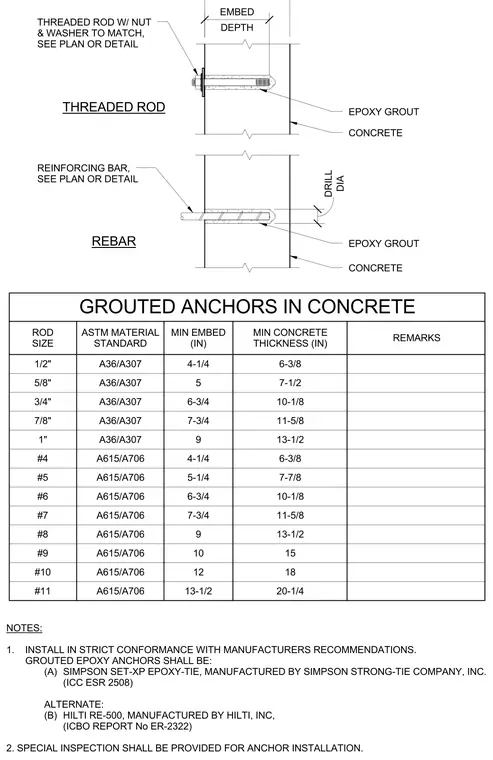

Embedment configurations for grouted threaded rods and reinforcing bars installed in concrete, accompanied by a comprehensive sizing schedule. The threaded rod assembly consists of an ASTM A36 or A307 steel rod anchored with a nut and washer, set into a drilled hole filled with epoxy grout within a concrete element. The rebar assembly details deformed reinforcing bars meeting ASTM A615 or A706 standards, similarly secured with epoxy grout in drilled concrete holes. The accompanying table outlines minimum embedment depths and minimum concrete thicknesses for rod sizes ranging from one-half inch to one inch, and reinforcing bar sizes from number four through number eleven. General notes specify strict adherence to manufacturer recommendations, permitting Simpson Set-XP Epoxy-Tie or Hilti RE-500 as approved products, and mandate special inspection for all anchor installations.
