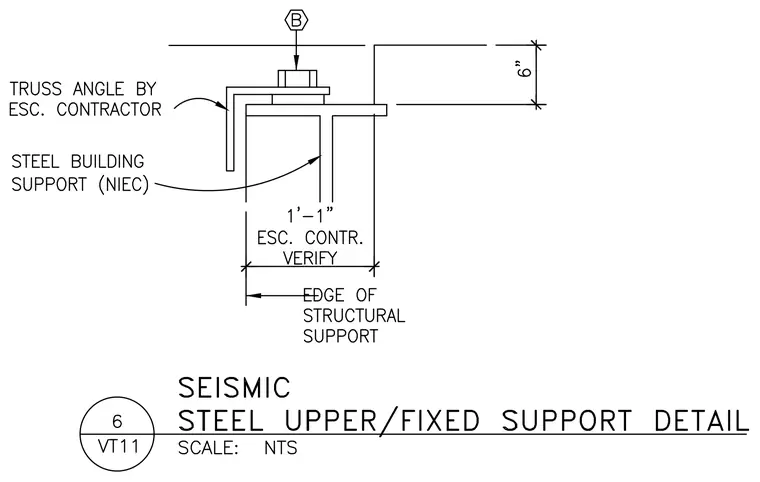

This seismic steel upper and fixed support detail connects a truss angle provided by the specialty contractor to a steel building support. The assembly features a bolted connection tied to a structural support with a designated six-inch vertical clearance dimension. The steel building support position is marked with a one-foot one-inch dimension to be verified by the specialty contractor.
