A structural steel hollow structural section post bears on a steel base plate anchored into a concrete footing below a concrete slab-on-grade. The assembly features a twelve-inch square by one-inch thick plate with a yield strength of fifty ksi for standard posts, or a ten-inch by six-inch by three-quarter-inch thick plate for specific hollow structural section sizes at corner conditions. Anchor bolts secure the base plate to the footing, while the concrete surface beneath is roughened to a quarter-inch amplitude. A thick polyfoam sleeve wraps the column, with the top half-inch removed after twenty-eight-day strength is achieved and filled with sealant. Slab dowels matching the slab reinforcement tie into the surrounding concrete.

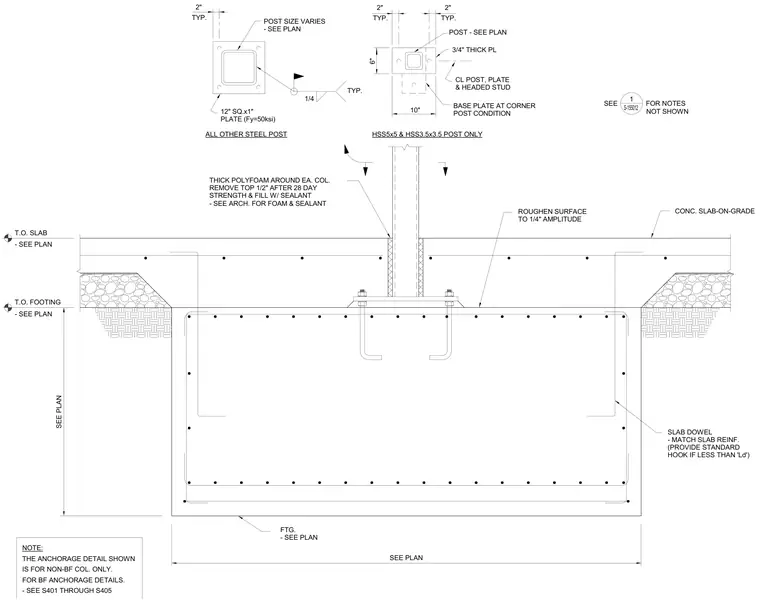

NOT SHOWN SEE FOR NOTES 1/4 TYP. TYP. TYP. TYP. 10" SEE PLAN SEE PLAN 2" POST SIZE VARIES - SEE PLAN 12" SQ.x1" PLATE (Fy=50ksi) ALL OTHER STEEL POST 2" 2" 3/4" THICK PL CL POST, PLATE & HEADED STUD POST - SEE PLAN HSS5x5 & HSS3.5x3.5 POST ONLY BASE PLATE AT CORNER POST CONDITION 6" NOTE: THE ANCHORAGE DETAIL SHOWN IS FOR NON-BF COL. ONLY. FOR BF ANCHORAGE DETAILS. - SEE S401 THROUGH S405 T.O. SLAB - SEE PLAN T.O. FOOTING - SEE PLAN THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. FOR FOAM & SEALANT ROUGHEN SURFACE TO 1/4" AMPLITUDE CONC. SLAB-ON-GRADE FTG. - SEE PLAN SLAB DOWEL - MATCH SLAB REINF. (PROVIDE STANDARD HOOK IF LESS THAN 'Ld') 1 S-155012
