Metal studs are sized per plans and elevations, while furring studs are sized per sections. A four-inch by eighteen-gauge track segment with a length equal to dimension L minus one inch is installed at the top and bottom of the furring stud. This track is spaced at forty-eight inches on center and secured with three number ten sheet metal screws to each stud typically.

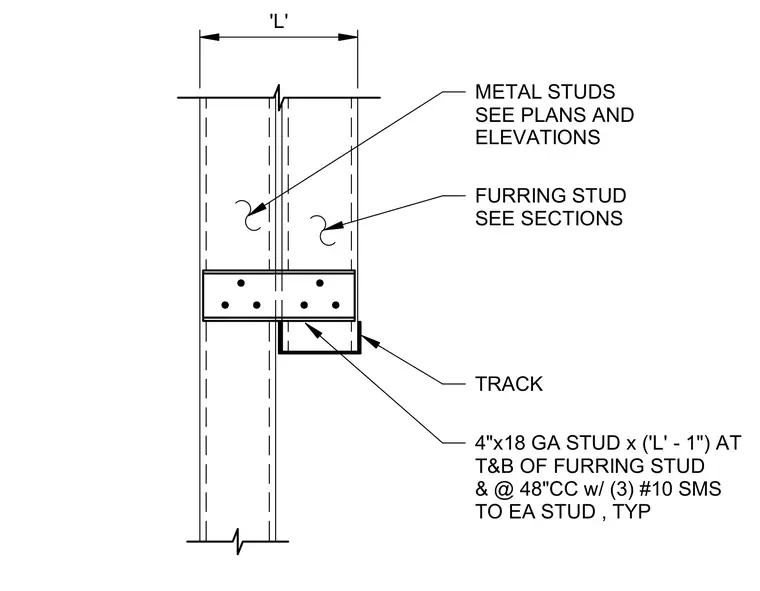

METAL STUDS SEE PLANS AND ELEVATIONS FURRING STUD SEE SECTIONS TRACK 4"x18 GA STUD x ('L' - 1") AT T&B OF FURRING STUD & @ 48"CC w/ (3) #10 SMS TO EA STUD , TYP 'L'
