Steel beams frame into the flange and web of a structural steel frame column within a braced frame system. Continuity plates are provided at the beam flange levels per specific details. Collector connections are detailed on each side of the column. Member sizes for the column and beam are determined per the structural plan and frame elevation.

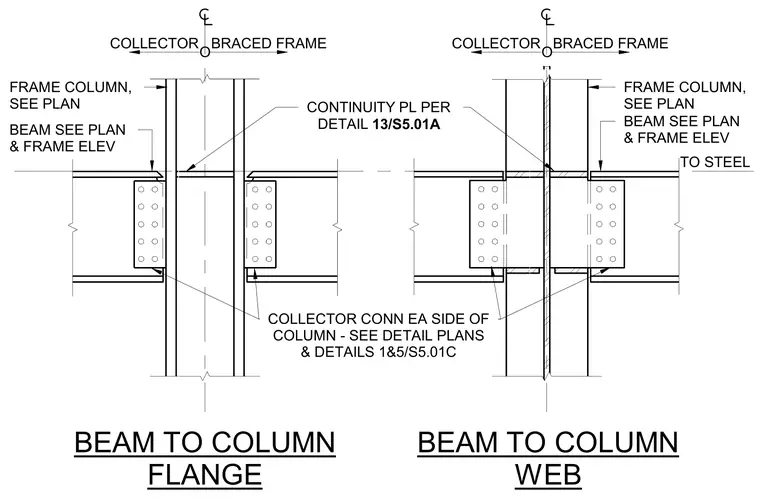

COLLECTOR CONN EA SIDE OF COLUMN - SEE DETAIL PLANS & DETAILS 1&5/S5.01C BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN CONTINUITY PL PER DETAIL 13/S5.01A O BRACED FRAME COLLECTOR TO STEEL BEAM TO COLUMN FLANGE BEAM TO COLUMN WEB O BRACED FRAME COLLECTOR BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN
