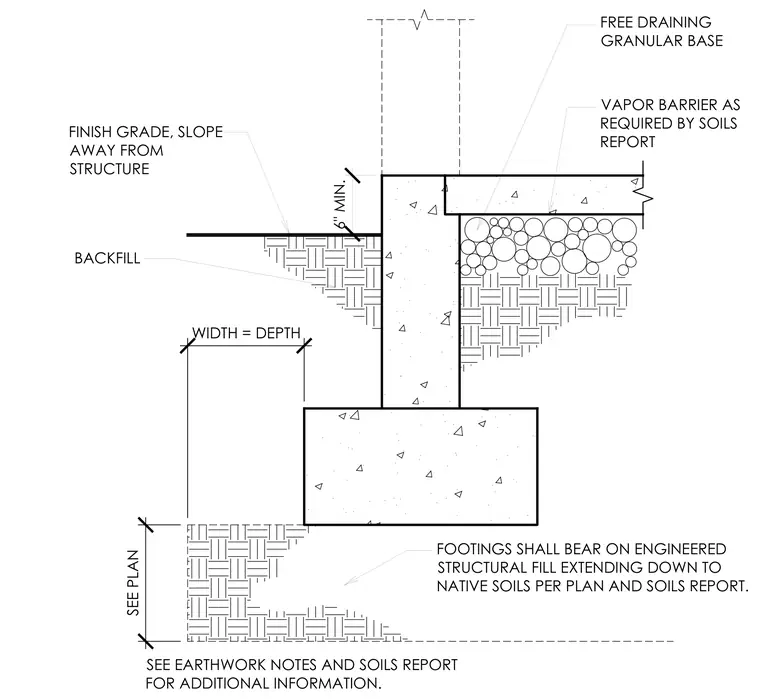

Footings shall bear on engineered structural fill extending down to native soils per plan and soils report, with a width equal to depth. A free draining granular base supports the slab-on-grade, which includes a vapor barrier as required by the soils report. Finish grade slopes away from the structure with a six-inch minimum clearance below the top of the foundation wall. Backfill is placed against the foundation wall per earthwork notes.
FINISH GRADE, SLOPE AWAY FROM STRUCTURE BACKFILL VAPOR BARRIER AS REQUIRED BY SOILS REPORT FREE DRAINING GRANULAR BASE WIDTH = DEPTH FOOTINGS SHALL BEAR ON ENGINEERED STRUCTURAL FILL EXTENDING DOWN TO NATIVE SOILS PER PLAN AND SOILS REPORT. SEE PLAN SEE EARTHWORK NOTES AND SOILS REPORT FOR ADDITIONAL INFORMATION. 6" MIN.
