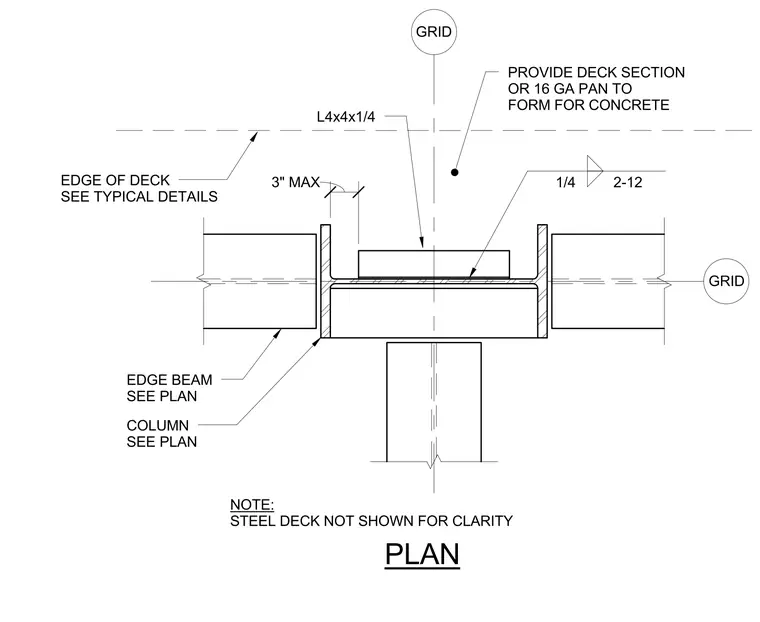

An exterior column supports an edge beam sized per plan, with an L4x4x1/4 angle welded using a one-quarter inch fillet weld at twelve inches on center. A deck section or sixteen gauge pan is provided to form the concrete, maintaining a maximum three inch dimension. The edge of the deck is detailed per typical details, and the steel deck is omitted for clarity.
GRID GRID PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 1/4 2-12 3" MAX NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN
