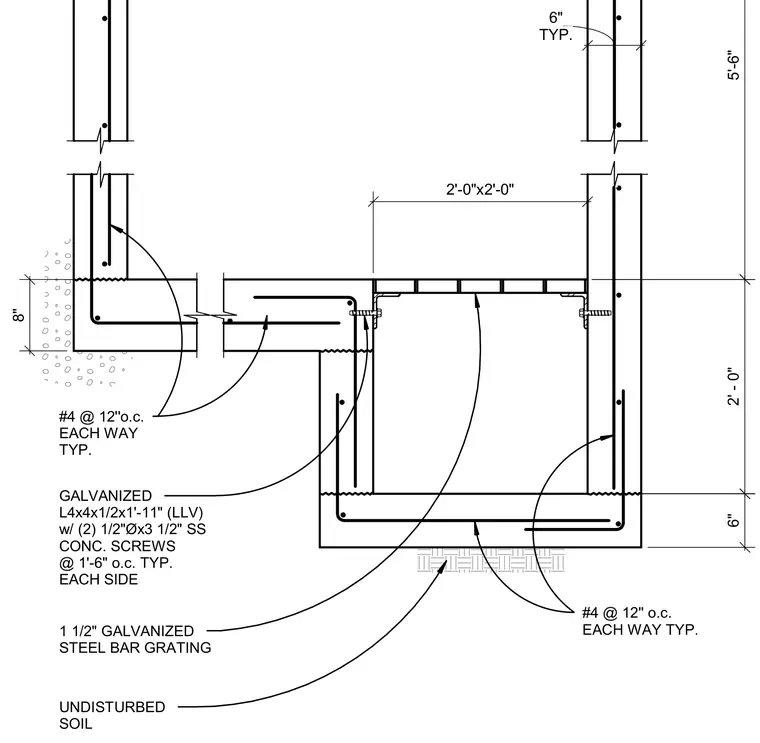

This structural section details a concrete elevator pit and sump bearing on undisturbed soil. The pit walls and slab are reinforced with number four reinforcing bars at twelve inches on center each way typically. A galvanized four-by-four-by-one-half-inch angle, one foot eleven inches long, is anchored to the concrete using two one-half-inch-diameter by three-and-one-half-inch stainless steel concrete screws at one foot six inches on center typical each side. A one-and-one-half-inch galvanized steel bar grating measuring two feet by two feet rests on the supporting angle.
#4 @ 12'' o.c. EACH WAY TYP. #4 @ 12''o.c. EACH WAY TYP. UNDISTURBED SOIL GALVANIZED L4x4x1/2x1'-11" (LLV) w/ (2) 1/2"Øx3 1/2" SS CONC. SCREWS @ 1'-6" o.c. TYP. EACH SIDE 1 1/2" GALVANIZED STEEL BAR GRATING 2'-0"x2'-0" TYP. 6" 6" 2' - 0" 5'-6" 8"
