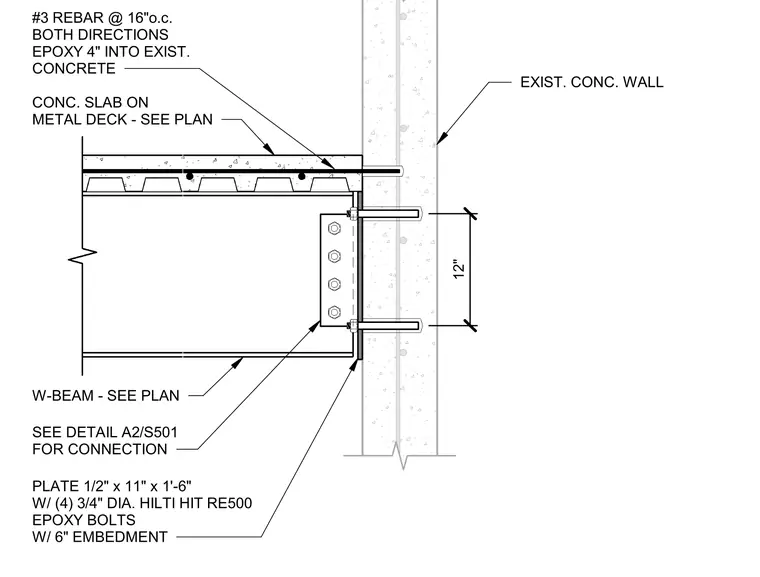

A wide-flange steel beam frames into an existing concrete wall using a half-inch by eleven-inch by one foot six inch steel plate secured with four three-quarter-inch diameter Hilti HIT RE500 epoxy bolts having six inches of embedment. A concrete slab on metal deck bears over the beam, tied into the existing concrete wall with number three reinforcing bars at sixteen inches on center in both directions, epoxy-anchored four inches deep into the existing concrete.
CONC. SLAB ON METAL DECK - SEE PLAN #3 REBAR @ 16"o.c. BOTH DIRECTIONS EPOXY 4" INTO EXIST. CONCRETE EXIST. CONC. WALL SEE DETAIL A2/S501 FOR CONNECTION W-BEAM - SEE PLAN PLATE 1/2" x 11" x 1'-6" W/ (4) 3/4" DIA. HILTI HIT RE500 EPOXY BOLTS W/ 6" EMBEDMENT 12"
