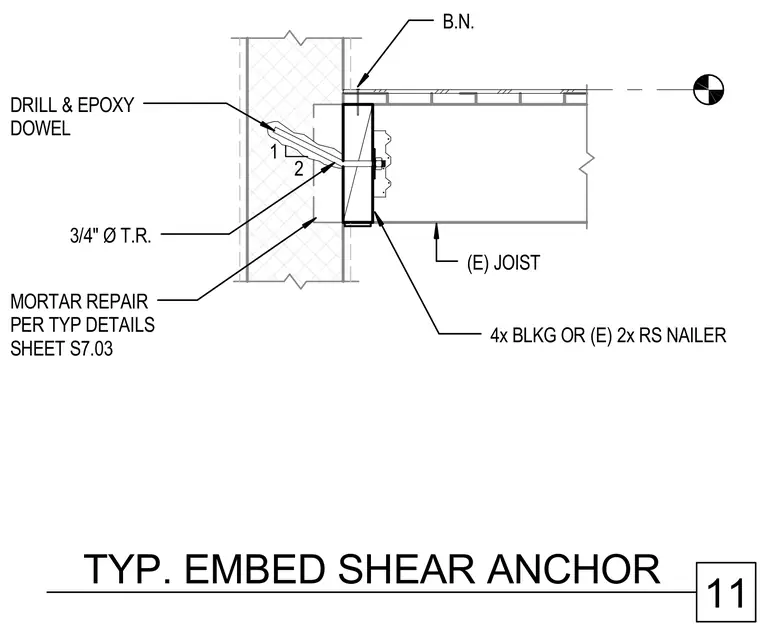

An existing joist is anchored to an existing masonry wall using a drill and epoxy dowel with a 3/4-inch diameter threaded rod. The assembly includes four-by blocking or an existing two-by rough sawn nailer at the ledger connection. Mortar repair is required per the typical details on sheet S7.03.
4x BLKG OR (E) 2x RS NAILER DRILL & EPOXY DOWEL (E) JOIST 3/4" Ø T.R. 2 1 B.N. MORTAR REPAIR PER TYP DETAILS SHEET S7.03 11 TYP. EMBED SHEAR ANCHOR
