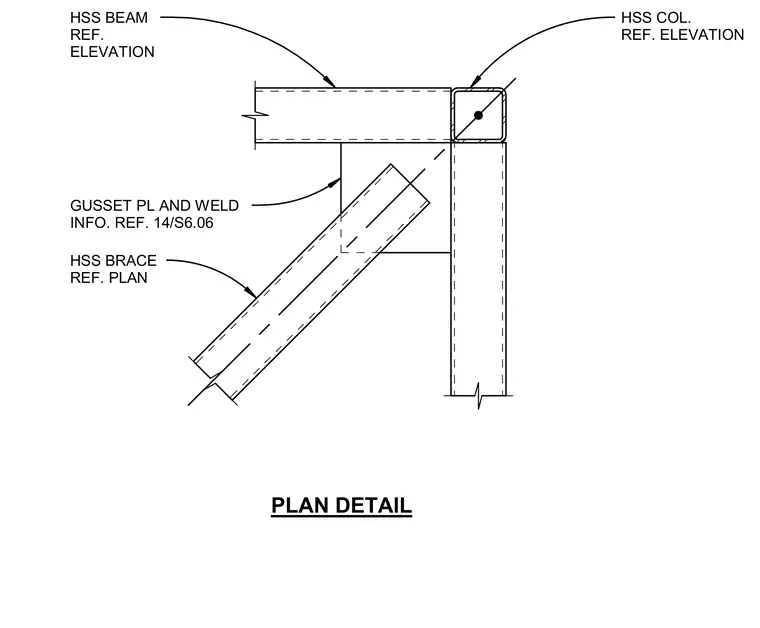

An HSS diagonal brace frames into the interior corner of an HSS column and intersecting HSS beam connection. A gusset plate ties the brace to the structural framing, with specific plate and weld sizing referenced to sheet S6.06. The hollow structural section members meet at the corner intersection to provide lateral stability to the frame.
PLAN DETAIL HSS BRACE REF. PLAN GUSSET PL AND WELD INFO. REF. 14/S6.06 HSS BEAM REF. ELEVATION HSS COL. REF. ELEVATION
