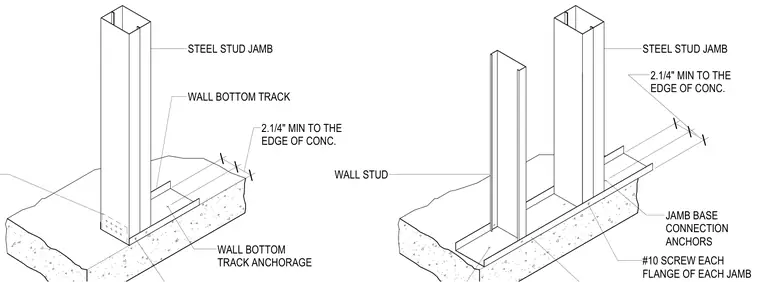

Steel stud jambs and wall studs bear on a wall bottom track secured to a concrete slab with anchorage. Number 10 screws fasten each flange of each jamb to the track. A minimum edge distance of two and one-quarter inches is maintained from the anchors to the edge of the concrete.
STEEL STUD JAMB WALL BOTTOM TRACK STEEL STUD JAMB WALL STUD JAMB BASE CONNECTION ANCHORS WALL BOTTOM TRACK ANCHORAGE #10 SCREW EACH FLANGE OF EACH JAMB 2.1/4" MIN TO THE EDGE OF CONC. 2.1/4" MIN TO THE EDGE OF CONC.
