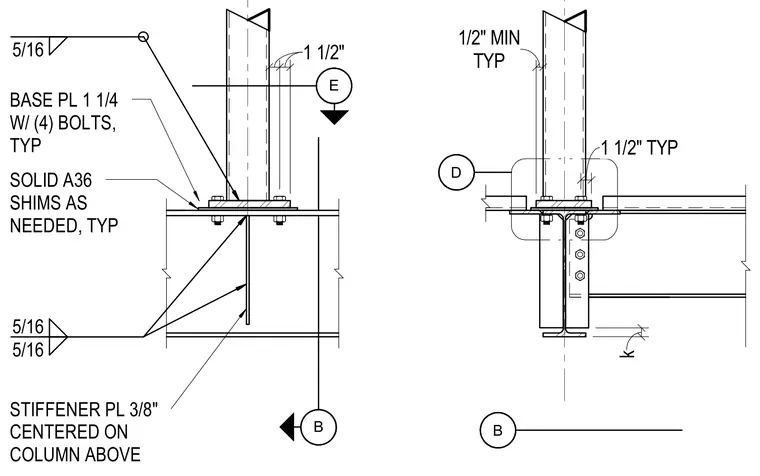

A structural steel column above bears on a 1 1/4 inch base plate with four bolts and solid A36 shims as needed. The supporting steel beam is reinforced with a 3/8 inch stiffener plate centered below the column and welded with 5/16 inch fillet welds. Fillet welds connect the base plate assembly to the supporting members.
B B D E k STIFFENER PL 3/8" CENTERED ON COLUMN ABOVE 5/16 5/16 BASE PL 1 1/4 W/ (4) BOLTS, TYP SOLID A36 SHIMS AS NEEDED, TYP 5/16 1 1/2" 1 1/2" TYP 1/2" MIN 1 1/2" TYP
