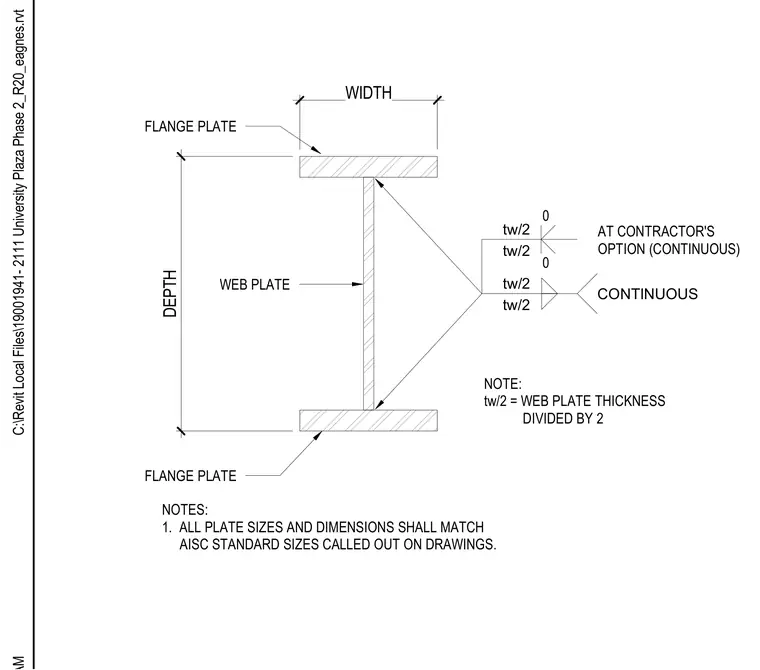

A built-up structural steel cross-section is detailed with a web plate, top flange plate, and bottom flange plate dimensioned by depth and width. Weld symbols indicate continuous welds with specific plate thickness distributions defined as tw/2 equal to the web plate thickness divided by two. Optional continuous welds are noted at the contractor's discretion. All plate sizes and dimensions must match AISC standard sizes called out on drawings.
AT CONTRACTOR'S OPTION (CONTINUOUS) 0 0 NOTES: 1. ALL PLATE SIZES AND DIMENSIONS SHALL MATCH AISC STANDARD SIZES CALLED OUT ON DRAWINGS. WEB PLATE FLANGE PLATE FLANGE PLATE NOTE: tw/2 = WEB PLATE THICKNESS DIVIDED BY 2 DEPTH WIDTH tw/2 tw/2 CONTINUOUS tw/2 tw/2 C:\Revit Local Files\19001941- 2111 University Plaza Phase 2_R20_eagnes.rvt
