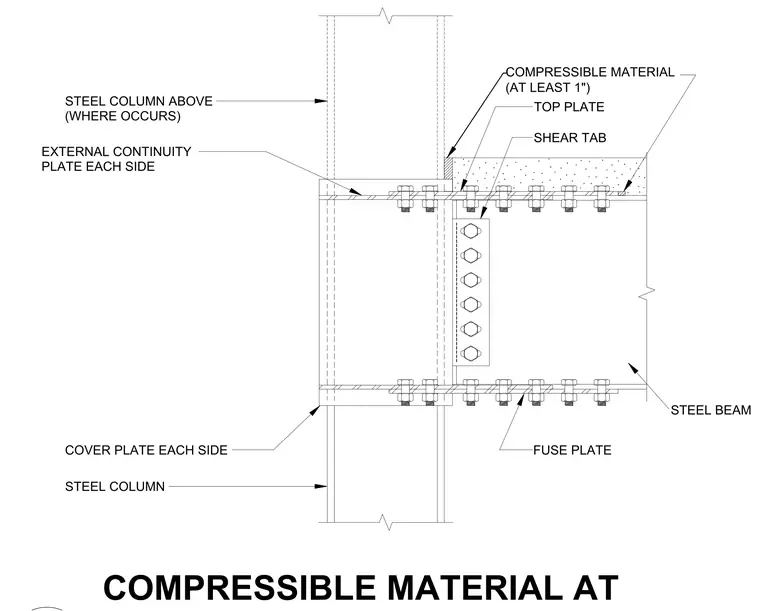

This structural steel connection joins a steel beam to a steel column using a bolted shear tab and bolted top and bottom plates. External continuity plates are provided on each side of the column web aligning with the beam flanges. Fuse plates are integrated into the connection along with a top plate, and compressible material at least one inch thick is detailed adjacent to the slab intersection. The steel column continues above where conditions occur.
SHEAR TAB STEEL COLUMN ABOVE (WHERE OCCURS) EXTERNAL CONTINUITY PLATE EACH SIDE COVER PLATE EACH SIDE TOP PLATE FUSE PLATE STEEL COLUMN STEEL BEAM COMPRESSIBLE MATERIAL (AT LEAST 1") COMPRESSIBLE MATERIAL AT
