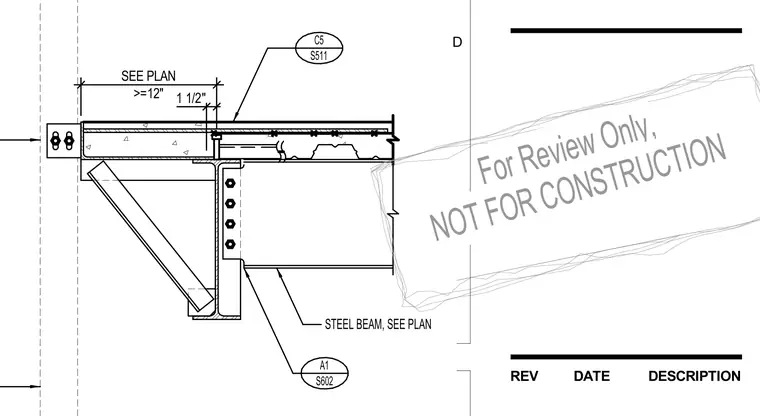

A steel beam connects to the column flange using a bolted web connection. A diagonal brace or kicker ties back to the supporting column assembly. Dimensions on the concrete slab above indicate a clearance of twelve inches minimum and one and one-half inches.
A1 S602 C5 S511 STEEL BEAM, SEE PLAN SEE PLAN >=12" 1 1/2" REV DATE DESCRIPTION D For Review Only, NOT FOR CONSTRUCTION
