Structural · S-Z3T7A

Deck Flutes Parallel to Beam

Materials

Elements

About this detail

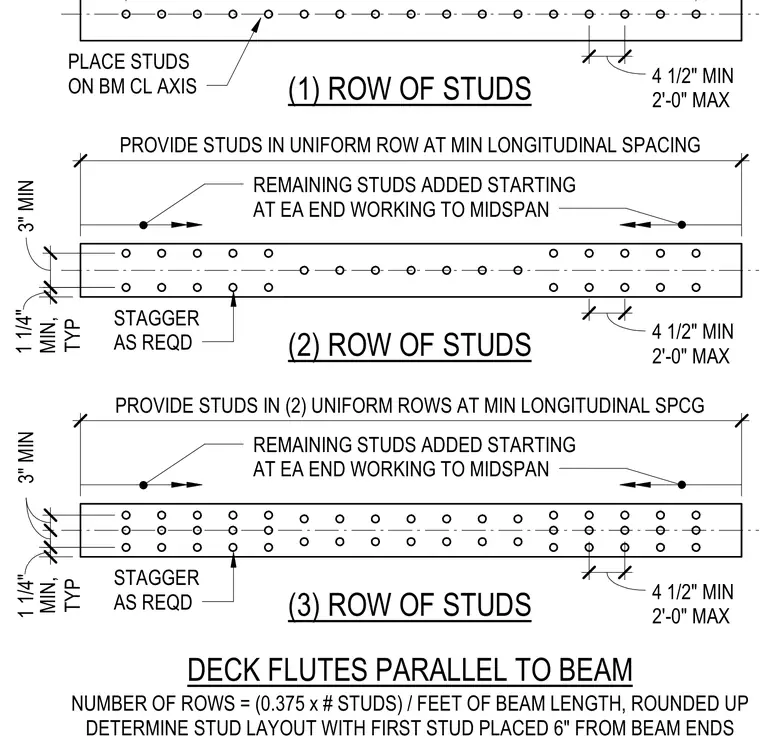

Shear stud placement configurations on a steel beam when metal deck flutes run parallel to the beam. The number of rows is determined by multiplying the number of studs by zero point three seven five and dividing by the beam length in feet, rounded up. Stud layouts begin with the first stud placed six inches from each beam end, with longitudinal spacing ranging from four and one-half inches minimum to two feet zero inches maximum. Single-row configurations place studs along the beam centerline axis. Two-row configurations arrange studs with a typical one and one-quarter inch minimum spacing and stagger as required. Three-row configurations provide studs in two uniform rows with remaining studs added starting at each end and working toward midspan.
