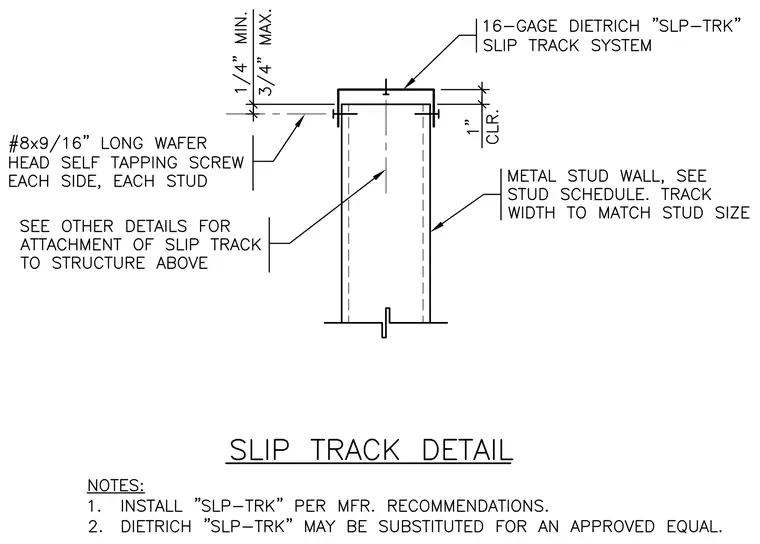

The head of a metal stud wall frames into a 16-gauge Dietrich SLP-TRK slip track system. The slip track allows for vertical deflection with a 1-inch clearance and a designated range of 1/4 inch minimum to 3/4 inch maximum movement. Each stud connects to the slip track flanges using #8 by 9/16-inch long wafer head self-tapping screws on each side. The track width matches the stud size specified in the stud schedule, and the attachment of the slip track to the structure above is referenced to other details. General notes require installation per manufacturer recommendations and permit substitution with an approved equal.
